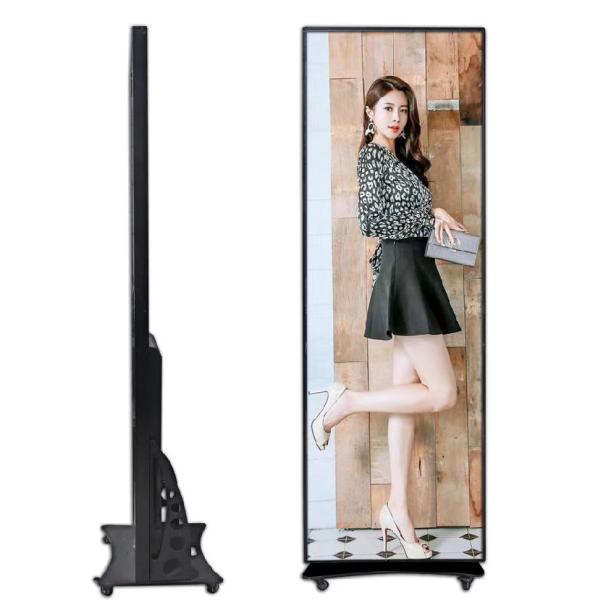

Full Color Indoor HD Screen , Small Pitch Floor Standing LED Poster Display
As the fast developing of the economy, people concerns more on enriching their spiritual life, small TV and LCD can't meet their needs anymore. Many entertainments activities and events is organized everyday, such as DJ clubs, parties, concerts, conference meeting events. A big rental led display makes the whole activies and events shining with its uniform color vivid video effect, high brightness, broad viewing face and perspective, live broadcast available characteristics. PHILID focus on providing high quality indoor/outdoor rental led display from P3 to P10 for customers in media & entertainment industries, have done many successful projects all over the world.
| LED Parameters |
| No. | Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition |
| 1 | Red LED | 55mcd | 120º/120º | 620-630nm | 25℃,8mA |
| 2 | Green LED | 220mcd | 120º/120º | 520-535nm | 25℃,5mA |
| 3 | Blue LED | 25mcd | 120º/120º | 465-475nm | 25℃,3mA |
| Module Specifications |   |
| 1 | Pixel Pitch | 4.81mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 52dots X 52dots |
| 4 | Module Pixles | 2704 dots 8192dots |
| 5 | Module Size | 250mm X 250mm |
| 6 | Module Weight | 0.5KG |
| Cabinet Data |  |
| 1 | Cabinet size | 1000x2000mm |
| 2 | Cabinet resolution | 208X416pixels |
| 3 | Cabinet weight | 100kg |
| 4 | Cabinet shape | Y |
| 5 | Cabinet material | steel iron only |
| 6 | Brightness | 4500cd/m2 |
| Screen Parameters |
| 1 | Screen Area | 1000x2000mm |
| 2 | Whole Screen Resolution | 208X416pixels |
| 3 | Cabinet Size | 1000X2000mm |
| 4 | Brightness | 4500cd/m2 |
| 5 | Driving Method | 1/13 scan constant current |
| 6 | View Angle | Horizontal 120° Vertical 120° |
| 7 | Optimal Viewing Distance | 5m to 300m |
| 8 | Brightness Control | Red,Green and Blue 16384 Grade/Each |
| 9 | Fresh requency | ≥1200Hz |
| 10 | Frame Frequency | 50 -- 60Hz |
| 11 | Input Voltage | AC220V/50Hz or AC110V/60Hz |
| 12 | Defects Rate | ≤0.00001 |
| 13 | Power Consumption | Max.:1000W/㎡ Average: 500W/㎡ |
| 14 | Screen weight | ≤100kg/PC |
| 15 | MTBF | >10,000 hours |
| 16 | Life span | ≥100,000 hours |
| 17 | Module Display Brightness Uniformity | <1% |
| 18 | Earth Leakage Current | <3mA |
| 19 | Protective Grade | IP65 |
| 20 | Temperature-operating | ﹣40℃～60℃ |
| 21 | Humidity-operating | 20%～85% |
| 22 | Controlling system | HUIDU |
| 23 | Operating System | Windows98/me/2000/NT/XP/10 |
Product specification

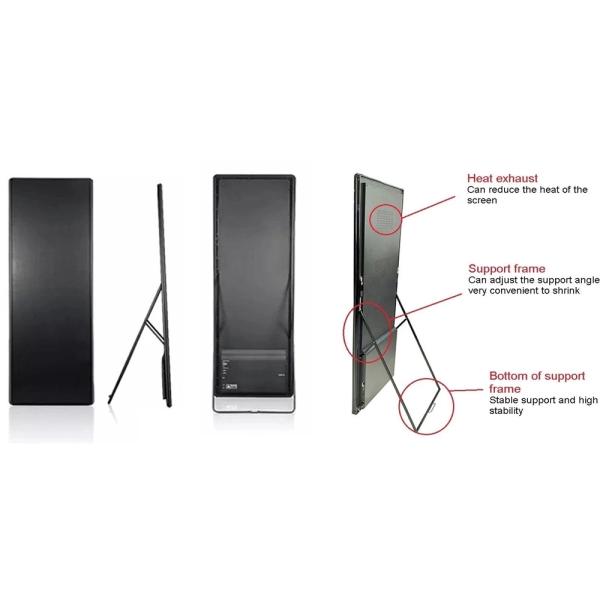

1 Power supplies and receiving cards can be replaced separately and quickly, even in 1 second.
2 The LED cabinet can be maintained separately with power off, without affecting the work of other cabinets.
3 Fast lock connection, quick and convenient,Capable of self lock, connection and fine tuning,Curve angle -15º ~15º.
4 Unique protruded design around the LED cabinets, the LED modules can be protected in the process of assembling, transporting and placing.
5 Special arc, scale and chain design on the LED cabinets sides, any arc-shape achievable.
6 Advanced gravity sensor design in the LED cabinets, pictures can be auto-rotated along with the LED cabinets.
7 Precise auto-calibration function, making the LED screen clearer.
8 Humanized handle design, with rubber cover, making it convenient and comfortable to operate.
